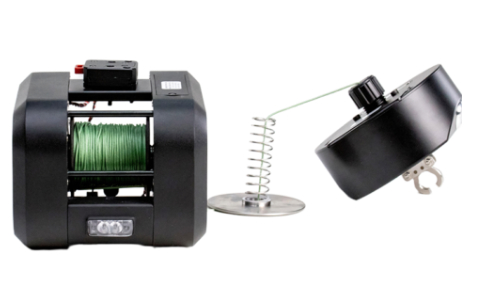

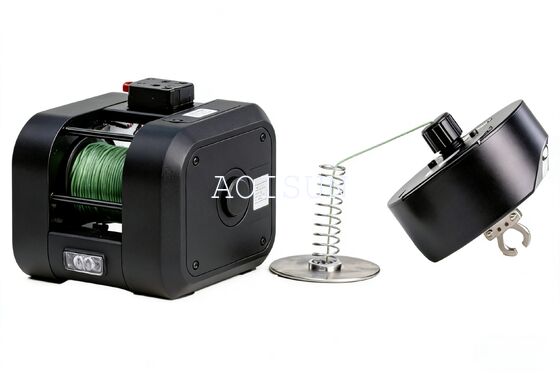

The 10kg Large Payload Drone Drop Release Winch System with 25M cable is a specialized industrial-grade aerial winch solution designed for heavy-duty industrial drones. With a 10kg maximum payload capacity, this system offers an optimal balance of load capability and operational flexibility, making it ideal for mid-heavy cargo delivery applications.
This system features an integrated auto-spooling cable management system paired with a 25-meter high-tensile cable, ensuring orderly, tangle-free retraction and extension of the line. This eliminates manual cable handling and significantly reduces in-flight hazards.
- Compact Design: 173*134*142 mm
- Self-weight: 1.1kg
- Payload Capacity: 10kg maximum
- Cable Length: 25 meters high-tensile
- Lifting Speed: 0.6m/s maximum
- Anti-tangling System: Prevents cable wrap-back failures
- Auto-spooling: Standard 25M orderly cable winding
- Smart Controls: One-touch release/retract operations
- Emergency Cable Cut: 1-second activation for rapid response
- Ground-contact Auto-stop: With instant release capability
- Safety Limits: Upper/lower limit auto-stop protection
- Soft-stop: 0.5m before reaching upper limit
- Red slow-flash: Overload (≥10kg)
- Yellow slow-flash: Heavy load (8-10kg)
- Green slow-flash: Normal load (<8kg)
| Category | Parameter | Specification |
|---|---|---|
| Basic Parameters | Main Body Dimensions | 173*134*142mm (with quick-release parts, excluding release hook) |
| Main Body Weight | 1100g | |
| Additional Components | Auto-release hook: 230g | Counterweight ring: 340g | |
| Performance | Max Lifting Weight | 10kg |
| Performance | Retract/Release Speed | 0.1-0.6m/s |
| Performance | Motor Rotation Speed | 38-228RPM |
| Power Supply | Operating Voltage | 22-56V DC (Battery powered, no DCDC support) |
| Control Methods | Standard | SBUS |
| Optional | Remote controller | |
| Optional | PWM | |
| Optional | RS232/RS422 (Supports ground station development) |
- Device status
- Motor status
- Input voltage
- Deployed cable length
- Speed and motor RPM
- Phase current
- Total used length
- Overload count
- Fuse trips count
- System uptime
- Total operation time
- Fixed deployment/retraction length
- Motor speed adjustment
- Blue slow-flash: Normal operation
- Yellow rapid-flash: Motor fault
- Red rapid-flash: Overcurrent protection trigger
Integration Capability: This winch system seamlessly integrates with third-party ground control stations through embedded communication protocols, providing comprehensive development support for industrial drone cargo delivery applications.
