| Brand Name: | AOISUN |
| MOQ: | 1 |
| Delivery Time: | 2 weeks |
Experience Superior Illumination With The T10 Drone Payloads

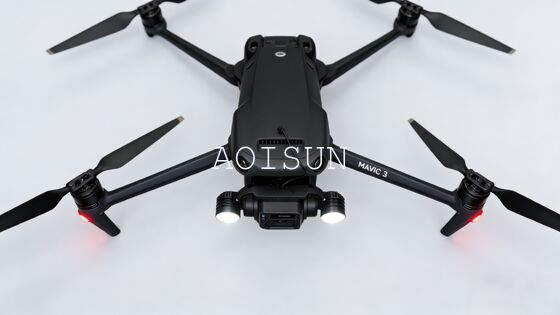

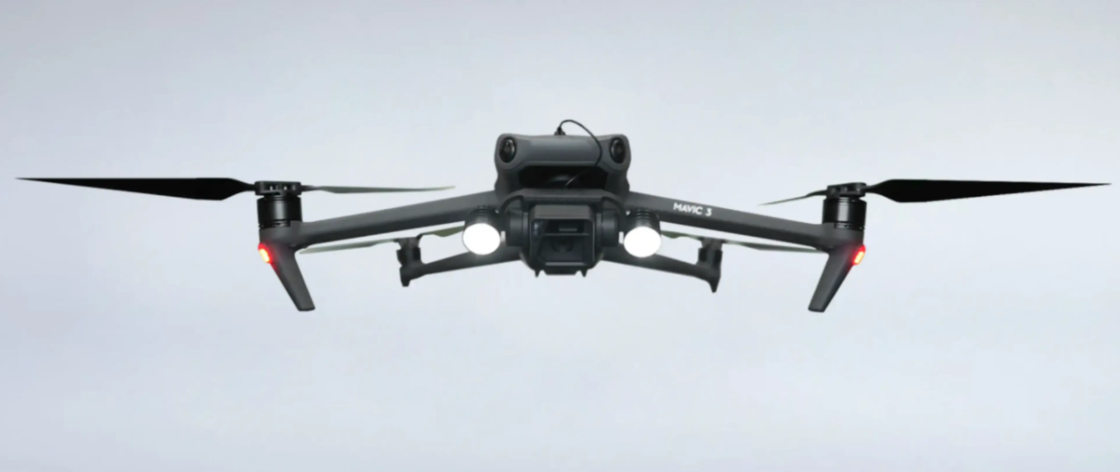

Designed exclusively for DJI consumer drones, the T10 Combined Searchlight adopts laser lamp beads identical to those used in luxury car laser headlights and aspherical quartz condensing lenses. It combines with Fresnel flat lenses to converge a sharp 14° light beam, achieving an effective illumination distance of 100 meters.
The entire unit weighs only 20 grams and undergoes precise leveling based on the original factory digital model, ensuring no change to the gimbal's center of gravity after installation. It has a built-in high-efficiency constant current driver and an inductive switch, allowing remote on/off and mode switching without additional control links. Powered via OTG, it requires no external battery, guaranteeing battery life and flight safety.
Technical Parameters
|
Parameter |
Specification |
|
Dimensions |
110 x 28 x 33 mm |
|
Weight |
20g |
|
Lighting Modes |
Constant On, Strobe |
|
Rated Power |
10W |
|
Compatible Models |
DJI Consumer Drones |
|
Lighting Angle |
14° |
|
Lighting Distance |
30m, 50m, 100m |
|
Central Illuminance |
22Lux (30m), 8Lux (50m), 2Lux (100m) |
|
Installation Method |
Quick-Release Buckle |
|
Operation Control |
Gimbal Control |
|
Operating Temperature |
-10 °C to 50 °C |
|
Storage Temperature |
-20 °C to 60 °C |
