10W DJI Matrice 30 Payload Red Blue Strobe Drone Light 2 In 1
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
Detail Information
Brand Name
AOISUN
Name:
DJI Matrice 30 Payload
Electric Interface:
DJI PSDK
Dimensions:
185 Mm X 98 Mm X 26 Mm
Light Type:
6500K Light, Red/blue Lights
Spotlight Power:
2 X 30W
Warning Light Power:
Red 10W, Blue 10W
Operating Temperature:
-20°C To +50°C
Luminous Flux/lm:
(4400-4800) Lm ±3%
Control Method:
DJI Pilot 2
Highlight:
10W DJI Matrice 30 Payload
,DJI Matrice 30 Payload Red
,Blue Strobe Drone Light
Product Description

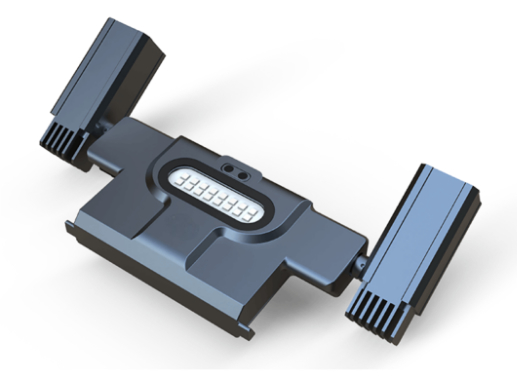

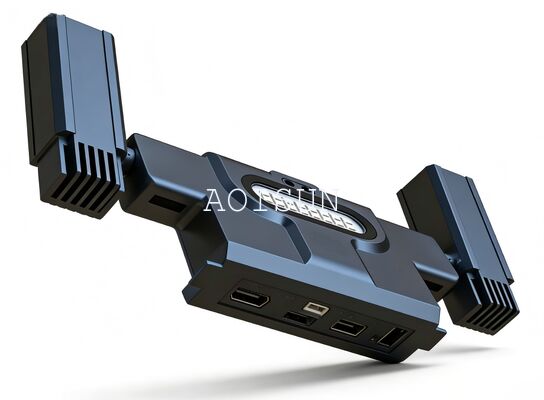

10W DJI Matrice 30 Payload Red Blue Strobe Drone Light 2 In 1
Spotlights Searchlights With Strobe Warning Lights 2 In 1 For DJI M30
The DJI M30 Strobe Warning Lights and Spotlight Searchlight 2-in-1 Payload is a versatile, multi-functional gimbal light system designed for optimal performance in various applications. Equipped with a multi-lens optical system, this payload features both red and blue strobe warning lights and a standard spotlight system for enhanced visibility and safety.
It provides adjustable pan and tilt for precise lighting control, along with automatic camera tracking, brightness adjustment, strobe modes, and safety lock functions. With advanced heat dissipation technology and excellent waterproof and dustproof performance, it is built to perform reliably in demanding environmental conditions, including harsh weather.
This payload can be easily mounted to the DJI Matrice 30 series drones via the PSDK interface, enabling seamless integration with your drone. It is widely used in police and firefighting, gimbal camera supplemental lighting, search and rescue patrols, night rescue missions, and maritime illumination.
Key Features
-
Gimbal Light Pan and Tilt Adjustment
Allows users to adjust the lighting angle as needed for both horizontal scanning and vertical illumination, offering flexibility for a variety of tasks. -
PSDK Interface & Quick Mounting
PSDK interface ensures easy and quick mounting to DJI M30 series drones, enabling full control of both the spotlight and warning lights through DJI Pilot 2. -
Automatic Camera Following
The spotlight automatically tracks the movements of the drone's gimbal camera, ensuring that the light is always accurately directed to the target area during filming or monitoring. -
Adjustable White Spotlight & Red/Blue Strobe Mode
Offers continuous white light mode for stable, long-duration lighting, and a red/blue strobe mode, ideal for emergency rescue, law enforcement, and high-visibility operations. -
High Performance
Features advanced heat dissipation technology for reliable operation in extreme conditions, and IP-rated waterproof and dustproof design to withstand challenging environments.
Technical Specifications
| Electric interface | DJI PSDK |
| Dimensions | 185 mm x 98 mm x 26 mm |
| Light Type | 6500K light, red/blue lights |
| Spotlight Power | 2 x 30W |
| Warning Light Power | Red 10W, Blue 10W |
| Operating Temperature | -20°C to +50°C |
| Adjustable Rotation Range for Gimbal | Pitch -100° to +30° |
| Luminous Flux/lm | (4400-4800) lm ±3% |
| Lighting Area |
|
| Control Method | DJI Pilot 2 |
| Function Modes |
Pan and tilt adjustment for gimbal light, automatic camera following, white light brightness adjustment, red/blue strobe mode |
