Industrial DJI Matrice 30 Payload 102X103X72mm Drone Air Quality Sensor
Industrial DJI Matrice 30 Payload 102X103X72mm Drone Air Quality Sensor
DJI Matrice 30 Air Quality & Gas Detection Sensor The DJI M30 Gas Detection Sensor is a high-performance air quality and hazardous gas monitoring payload developed using the DJI SDK. Designed for environmental protection, emergency response, smart cities, industrial safety, and oil & gas pipeline ...
Brand Name:AOISUN
Model Number:Mini2
Minimum Order Quantity:1
Product Custom Attributes
Highlight
Industrial DJI Matrice 30 Payload
,DJI Matrice 30 Payload 102X103X72mm
,102X103X72mm Drone Air Quality Sensor
Name:
DJI Matrice 30 Payload
Size:
102X103X72mm
Weight:
300g
Interface Port:
DJI PSDK V3.0
Data Transfer:
DJI Datalink And 4G
Installation:
Quick-release
Network:
4G/3G/EDGE/GPRS Connectivity
SD Card:
32GB
Data Retrieval:
Algorithm
Working Temperature:
-20℃ To 55℃
Product Description

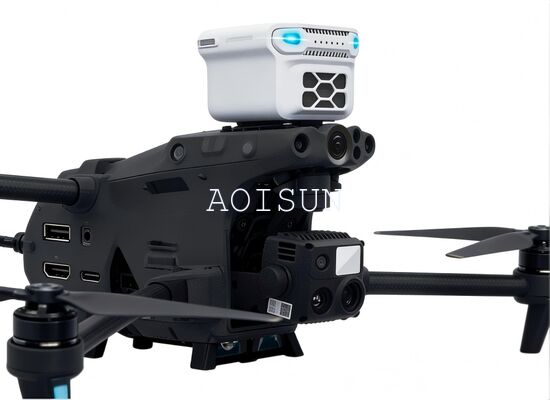

DJI Matrice 30 Air Quality & Gas Detection Sensor
The DJI M30 Gas Detection Sensor is a high-performance air quality and hazardous gas monitoring payload developed using the DJI SDK. Designed for environmental protection, emergency response, smart cities, industrial safety, and oil & gas pipeline inspection, this sensor provides real-time, accurate, georeferenced gas concentration data to support critical decision-making.
Advanced Compact Design
The Mini2 Air Gas Detection Sensor works seamlessly with the DJI M30 series, offering a compact yet highly capable sensing platform. Its upgraded industrial design significantly reduces size and weight, while the quick-release mount and simplified cable connection greatly shorten preparation time and maximize the M30's effective flight duration.
Key Features & Capabilities
- Developed on DJI SDK; fully compatible with DJI M30 Series
- Real-time visualized 3D gas concentration distribution
- Supports up to 9 gas parameters simultaneously
- Compact, lightweight redesign with reduced preparation time
- Quick-release mounting & simplified cable connection
- RGB status/warning lights with wide visibility angle
- Integrated with intelligent visual analysis software
- Supports DJI Cloud API for cloud-based visualization
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions | 102 * 103 * 72 mm |
| Weight | 300g |
| Interface Port | DJI PSDK V3.0 |
| Compatibility | DJI Matrice 30 drone |
| Data Transfer | DJI datalink and 4G |
| Network Connectivity | 4G/3G/EDGE/GPRS |
| Installation | Quick-Release System |
| Working Temperature | -20℃ to 55℃ |
| Maximum Gas Parameters | 9 parameters per sensor |
| SD Card | 32GB |
| Data Retrieval | Algorithm-based processing |
Available Detection Parameters
PM2.5, PM10, SO2, CO, NO2, O2, O3, VOCs, LEL/CH4, CO2, HF, H2S, NH3, HCl, H2, Cl2, PH3, NO, HCN, High-Resolution CH4, Odor (OU)
Detection Technologies
Laser scattering / light scattering, electrochemistry, photoionization, non-dispersive infrared
Industrial Applications
Environmental protection, emergency response operations, smart city monitoring, industrial plant safety inspections, oil & gas pipeline monitoring and inspection.
Automated Operations
When combined with an automated drone dock, this sensor enables fully unmanned, high-frequency environmental monitoring—unlocking new possibilities for scalable air quality and industrial safety operations.
