High Resolution 1280 Drone Gimbal Camera IR Laser Night Vision Camera
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
Detail Information
Brand Name
AOISUN
Name:
Drone Gimbal Camera
Weight:
1500g
Size:
173*152X191mm
Effective Pixels:
4MP
Aperture:
F/1.6-f/4.8
Lens Diameter:
Φ56mm
Image Sensor:
1/1.8″ CMOS
Video Resolution:
1920X 1080@30fps
Zoom:
30X Optical Zoom
Highlight:
High Resolution Drone Gimbal Camera
,1280 Drone Gimbal Camera
,IR Laser Night Vision Camera
Product Description

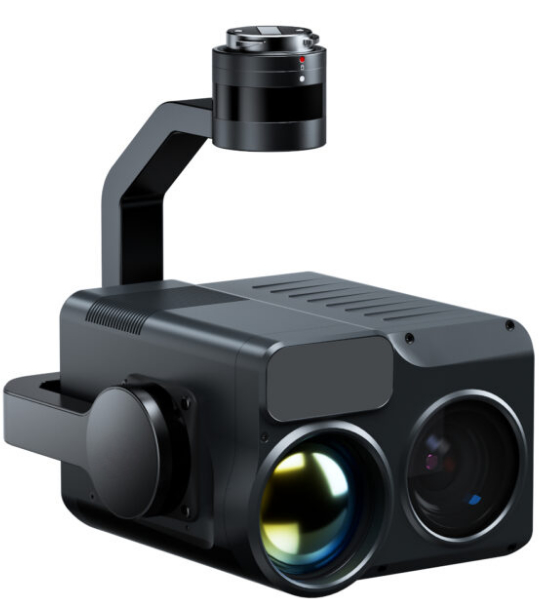

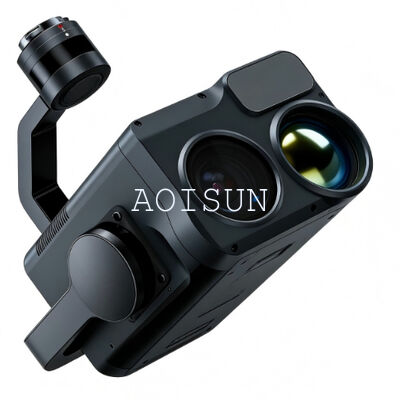

High Resolution 1280 Drone Gimbal Camera IR Laser Night Vision Camera
The C30N multi-function EO/IR drone gimbal camera integrates four advanced sensors in a single compact system:
a high-resolution 1280*1024 thermal imaging camera, a 30* optical zoom visible camera, an infrared laser
night-vision illuminator, and a laser rangefinder. Powered by a built-in NVIDIA AI processing module and
a high-precision 3-axis stabilized gimbal, the C30N is fully compatible with DJI M300 drones as well as
non-DJI multi-rotor and fixed-wing platforms.
Key Capabilities
- 1280*1024 high-resolution thermal imaging with 55mm telephoto lens
- 30* enhanced optical zoom visible-light camera for long-range detection
- IR laser night-vision illuminator for enhanced nighttime clarity
- Integrated laser rangefinder for real-time distance measurement
- NVIDIA AI processing with 21 TOPS edge computing power
- 3-axis high-precision stabilized gimbal with active temperature control
Technical Specifications
General Specifications
| Compatible Drone | DJI Matrice 300 RTK |
|---|---|
| Weight | 1500g |
| Size | 173*152*191mm |
| Gimbal | 3-axis stabilization enhanced gimbals, detachable installation, ±0.01° bumping |
Zoom Camera Specifications
| Effective Pixels | 4MP |
|---|---|
| Focal Length | 6.5-162.5mm (Full Frame 31.85-796mm) |
| Aperture | f/1.6-f/4.8 |
| Lens Diameter | Φ56mm |
| Image Sensor | 1/1.8″ CMOS |
| Video Resolution | 1920*1080@30fps |
| Zoom | 30* Optical zoom |
Thermal Imaging Camera
| Focal Length | 55mm (Equivalent to 121mm) |
|---|---|
| Aperture | f/1.1 |
| Lens Diameter | Φ50mm |
| Focus Distance | 100m to Infinite Distance |
| Video Resolution | 1280*1024@30fps |
| Digital Focus Zoom | 4*, 8*, 16*, 32*, 64* |
| Palettes | White Hot, Lava, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2, Stroke of Red, Black Heat |
IR Laser Night Vision Spotlights
| Wavelength | 850nm |
|---|---|
| Effective Distance | >400m |
Laser Rangefinder
| Wavelength | 905nm |
|---|---|
| Effective Distance | 10-1200m |
AI Algorithms
| AI Sensor | Nvidia Jetson Xavier chips NX embedded |
|---|---|
| Storage | 128GB |
Platform Compatibility
The C30N offers dual-platform support with DJI SDK ready plug-and-play integration for DJI Matrice 300 RTK,
plus a non-DJI version compatible with virtually any multi-rotor or fixed-wing UAV platform.
