18W DJI Matrice 300 Payload Quick Release Drone Drop Mechanism 5V The DJI M300 payload drop release mechanism is built on the DJI Onboard SDK, enabling precise payload airdrop control directly through DJI Pilot. Featuring a high-strength and lightweight quick-release mounting bracket, it integrates ...
Brand Name:AOISUN
Minimum Order Quantity:1
Product Custom Attributes
Highlight
18W DJI Matrice 300 Payload
,Quick Release Drone Drop Mechanism
,Drone Drop Mechanism 5V
Name:
DJI Matrice 300 Payload
Size:
62mm*62mm*92mm
Weight:
295g
Interface:
DJI Onboard SDK
Power:
18W
Voltage:
5V
Control:
DJI Pilot
Installation:
Quick-release
Hook:
5
Product Description
18W DJI Matrice 300 Payload Quick Release Drone Drop Mechanism 5V

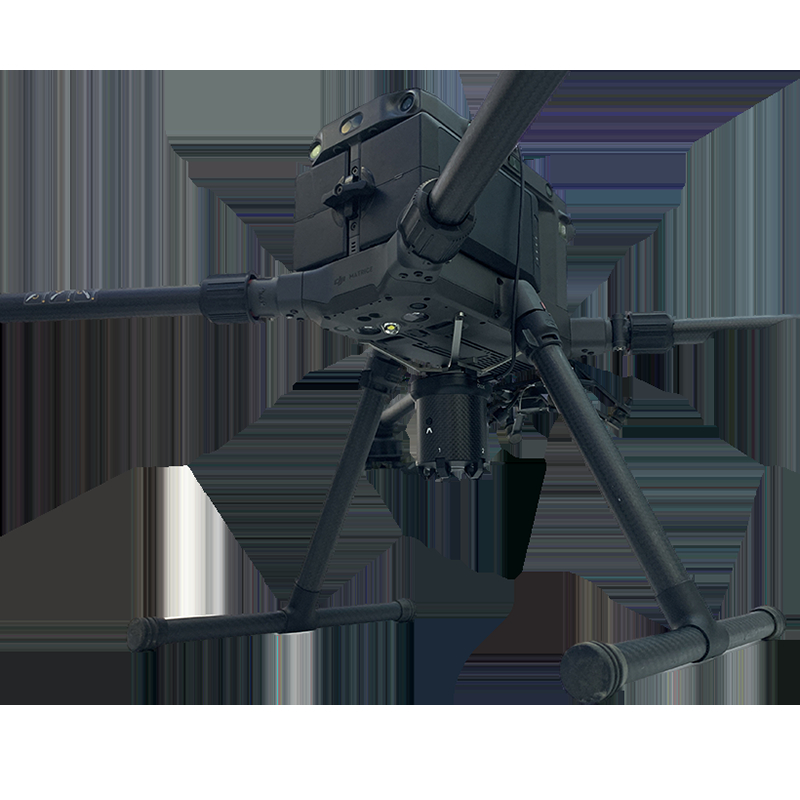

The DJI M300 payload drop release mechanism is built on the DJI Onboard SDK, enabling precise payload airdrop control directly through DJI Pilot. Featuring a high-strength and lightweight quick-release mounting bracket, it integrates five independent release hooks, each with a maximum load capacity of 5kg.
Key Features
DJI OSDK Integration – Seamless compatibility with the DJI Matrice 300 RTK, fully operated via DJI Pilot.
Lightweight & Durable Construction – Main body crafted from aviation-grade aluminum and carbon fiber, providing strong rigidity while maintaining easy assembly and disassembly.
Optimized Center of Gravity – Mounted at the center bottom of the drone to maintain flight balance and maximize operational stability and safety.
Fast & Secure Mounting Design – Sliding card slot combined with a spring-lock mechanism enables rapid installation. Simply push the spring lock to securely mount the dispenser with dual safety protection. To disassemble, press the spring lock and gently push to remove the unit.
Compatible with Non-DJI Multi-Rotor Drones – Can also be used on other multi-rotor platforms via PWM control.
Technical Specifications
| Size | 62mm * 62mm * 92mm |
| Weight | 295g |
| Interface | DJI onboard SDK |
| Power | 18W |
| Voltage | 5V |
| Control | DJI Pilot |
| Control Distance | As far as DJI M300 drone flight |
| Installation | Quick-release |
| Hook | 5 |
| Max Payload Weight | 10Kg (consider DJI M300 payload capacity, suggest no more than 3Kg) |
| Other NON-DJI Drone Support | YES |
Note: Maximum payload capacity is 10Kg, but for optimal performance with DJI M300, we recommend limiting payload to 3Kg.
