IP45 DJI Matrice 300 Payload Large Volume 2L Drone Water Sampler
IP45 DJI Matrice 300 Payload
,Large Volume Drone Water Sampler
,2L Drone Water Sampler

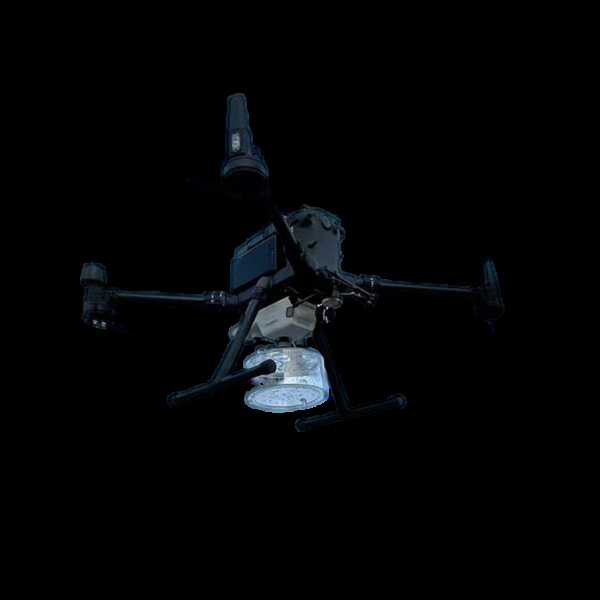

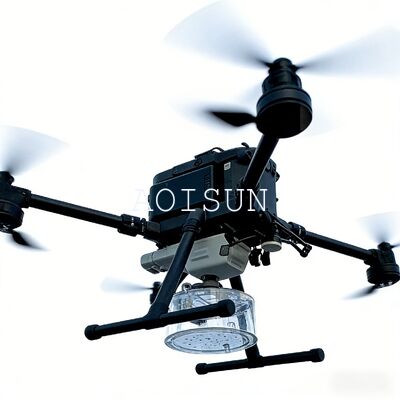

The Water Sampling Collection Device for the DJI M300 is an intelligent system specifically designed for drone-based BVLOS (Beyond Visual Line of Sight) water sampling operations. This advanced equipment features large sampling capacity, robust situational awareness capabilities, and comprehensive user-friendly functions to enhance operational efficiency while reducing costs.
- Large Sampling Capacity: Up to 2L water sampling volume with total weight of approximately 2.7kg (including 2kg water), well within DJI M300 RTK's maximum payload limit
- Ultra-Lightweight Design: Achieves effective payload ratio exceeding 74% for optimal drone performance
- One-Touch Auto Sampling: Automated water sampling at designated depths with single touch operation, plus semi-automatic and manual modes
- Built-in High-Resolution mm-Wave Radar: 1mm ultra-high resolution radar for precise water surface distance detection
- Built-in 180° Night Vision Camera: Starlight-level night vision camera enhances situational awareness in low-light conditions
- Multi-End Collaboration: Control and data access through both DJI Pilot and web browser for flexible operation
Integrates with DJI M300 RTK within 10 seconds. Automated sampling container deployment to designated depth with single touch operation. Maximum sampling volume of 2L with total weight of ~2.7kg, achieving payload ratio >74%.
Supports remote target setting with data synchronization to DJI Pilot for guidance. Built-in 180° night vision camera and mm-wave radar enable accurate BVLOS operations in various environments.
Real-time synchronization of sampling process to multiple platforms including DJI Pilot and web interfaces. Automated mission data saving, storage, and review capabilities streamline reporting processes.
Unique design minimizes container shaking post-sampling and reduces rotational inertia for enhanced flight safety and stability.
Built-in 180° night vision camera with 1/2-inch sensor, 180° D-FOV, F/2.0 aperture and starlight-level performance for comprehensive situational awareness.
1mm ultra-high-resolution mm-wave radar enables accurate water surface distance measurement, significantly reducing flight risks during BVLOS missions.
Clear working status indication provides both system information and safety operations for personnel near the equipment.
Off-site team remote target setting with automatic coordinate synchronization to DJI Pilot, guiding on-site teams to mission locations.
Intelligent closed-loop motion controls (distance & speed) enable precise, smooth one-touch automated water sampling at designated depths.
