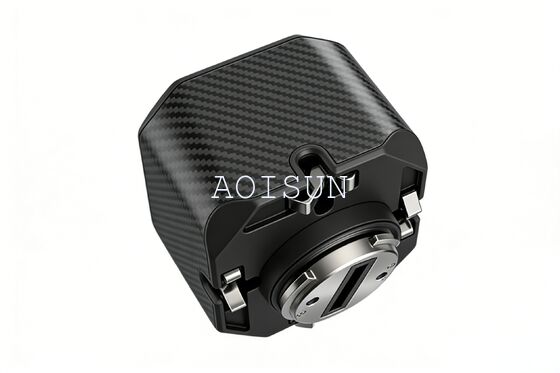

Manual Hanging Payload Drop Mechanism 10W Dropping Mechanism For Drone
Manual Hanging Payload Drop Mechanism 10W Dropping Mechanism For Drone
Manual Hanging Payload Drop Mechanism 10W Dropping Mechanism For Drone DJI M300 Drone Payload Drop Release Mechanism System Hooks With Camera This visual payload drop system for the DJI M300 is developed based on DJI PSDK and features a 4-hook airdrop structure, built-in HD camera, and unlimited ...
Brand Name:AOISUN
Model Number:PTS4
Minimum Order Quantity:1
Product Custom Attributes
Highlight
Manual Hanging Payload Drop Mechanism
,Payload Drop Mechanism 10W
,10W Dropping Mechanism For Drone
Name:
Payload Drop Mechanism
Product Model:
PTS4
Electrical Interface:
DJI SkyPort V2
Size:
57.4 X 57.4 X 54 Mm
Weight:
135g
Most Power:
10W
Coding Format:
H264
Mount Quantity:
4
Mounting Weight:
5kg
Product Description
Manual Hanging Payload Drop Mechanism 10W Dropping Mechanism For Drone
DJI M300 Drone Payload Drop Release Mechanism System Hooks With Camera
This visual payload drop system for the DJI M300 is developed based on DJI PSDK and features a 4-hook airdrop structure, built-in HD camera, and unlimited drop sequence capability. The system can be mounted quickly without powering on, and the DJI Pilot app provides real-time payload status and visual confirmation. With precise 1080P image transmission, operators can accurately aim and release payloads with a single click. The system supports ultra-light drops down to 0.1 g and heavy payloads up to 5 kg, and is compatible with both the DJI M200 V2 series and M300 RTK.
This visual payload drop system for the DJI M300 is developed based on DJI PSDK and features a 4-hook airdrop structure, built-in HD camera, and unlimited drop sequence capability. The system can be mounted quickly without powering on, and the DJI Pilot app provides real-time payload status and visual confirmation. With precise 1080P image transmission, operators can accurately aim and release payloads with a single click. The system supports ultra-light drops down to 0.1 g and heavy payloads up to 5 kg, and is compatible with both the DJI M200 V2 series and M300 RTK.
Key Features
Real-time Mounting Detection - Automatically identifies all four hook positions. Unlimited drop order, with real-time payload status displayed in the DJI Pilot app.
Integrated HD Camera - Built-in full-featured camera supports photo, video, and live 1080P transmission, enabling precise aiming and accurate delivery.
Flexible Drop Control - Each hook can be triggered independently via the DJI Pilot app with no sequence limitation—tap to release. Supports one-key group release for all four hooks simultaneously.
Manual Mounting Without Power - Payloads can be hung manually without powering on the drone, simplifying field operations.
Technical Specifications
| Product Model | PTS4 |
| Electrical Interface | DJI SkyPort V2 |
| Size | 57.4 x 57.4 x 54 mm |
| Weight | 135g |
| Supported Models | Matrice 300 RTK, Matrice 200 V2 |
| Maximum Power | 10W |
| Coding Format | h264 |
| Camera Functions | Photography, video, playback, download |
| Video Transmission Distance | As far as the DJI M300 drone |
| Hook Quantity | 4 |
| Maximum Payload per Hook | 5kg |
| Total Weight Capacity | 20kg |
| Delivery Functions | Single point drop and one key full drop |
| Installation Mode | DJI SKYPORT |
| Working Temperature | -10 ℃ ~ 50 ℃ |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
