High Power DJI Matrice 300 Payload 128W Drone Spotlights 20000 Lumens
High Power DJI Matrice 300 Payload 128W Drone Spotlights 20000 Lumens
High Power DJI Matrice 300 Payload 128W Drone Spotlights 20000 Lumens High Power Spotlight Searchlights For DJI M300 This high-power spotlight for the DJI M300 drone utilizes four LED lighting modules, delivering an impressive 20,000-lumen luminous flux. It provides an effective illumination ...
Brand Name:AOISUN
Model Number:T90
Minimum Order Quantity:1
Product Custom Attributes
Highlight
High Power DJI Matrice 300 Payload
,128W Drone Spotlights
,Drone Spotlights 20000 Lumens
Name:
DJI Matrice 300 Payload
Electrical Interface:
DJI SkyPort V2
Size:
123 X 142 X 125 Mm
Weight:
470g
Degree Protection:
IP4X
Max Power:
128W
Angular Jitter:
±0.1°
Working Temperature:
-10 ℃ ~ 50 ℃
Storage Temperature:
-20 ℃ ~ 60 ℃
Product Description
High Power DJI Matrice 300 Payload 128W Drone Spotlights 20000 Lumens
High Power Spotlight Searchlights For DJI M300

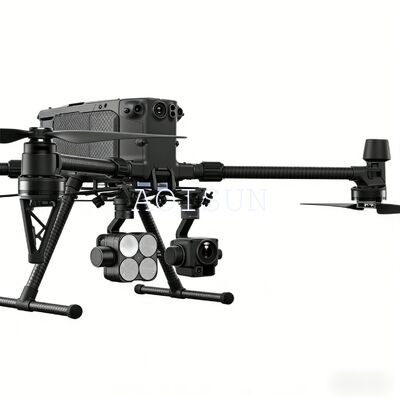

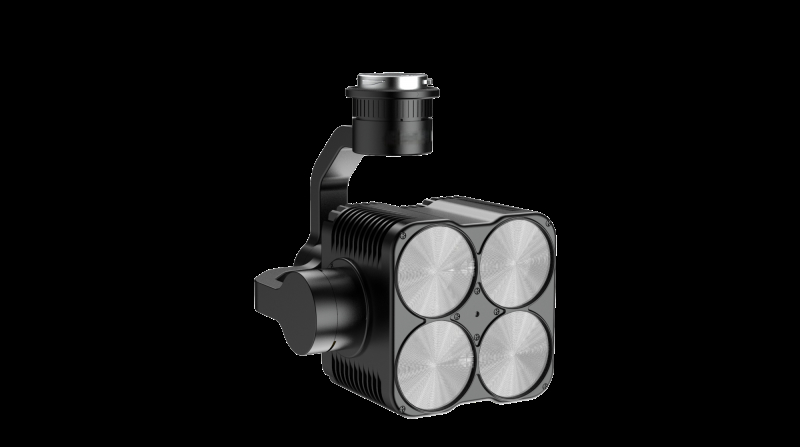

This high-power spotlight for the DJI M300 drone utilizes four LED lighting modules, delivering an impressive 20,000-lumen luminous flux. It provides an effective illumination distance of over 150 meters and covers a lighting area exceeding 1400 m². Equipped with an integrated 3-axis stabilized gimbal, it offers full 360° directional control, supporting synchronized movements with the DJI H20 camera for precise illumination. The system also features adjustable brightness, strong-light flash modes, an intelligent self-adjusting cooling fan for efficient heat dissipation, and IP45-rated dustproof and waterproof protection.
Key Features
- DJI Payload SDK Integration - Fully based on DJI Payload SDK, enabling complete control and operation through the DJI Pilot app.
- High Power & Ultra-Bright Output - Up to 128W high power, delivering 20,000 lumens of brightness with a lighting area of 1400 m² and illumination distance over 150 meters.
- One-Key Operation - Supports one-key on/off control, adjustable brightness, and long-distance illumination for search and inspection missions.
- 3-Axis Stabilized Gimbal - Provides 360° rotation for flexible angle lighting. The spotlight's movement is synchronized with DJI H20 cameras, ensuring coordinated directional lighting.
- Burst Mode Adjustment - Supports customizable burst brightness and flashing frequency for emergency signaling or enhanced visibility.
- Firmware Upgrade Support - Allows firmware updates by connecting the M300 drone via compatible software.
Technical Specifications
| Product Model | T90 |
| Electrical Interface | DJI SkyPort V2 |
| Size | 123 x 142 x 125 mm |
| Weight | 470g |
| Degree Protection | IP4X |
| Supported Models | Matrice 300 RTK, Matrice 200 V2 |
| Max Power | 128W |
| Stable System | 3-axis gimbal (pitch, roll, yaw) |
| Angular Jitter | ±0.1° |
| Working Temperature | -10 ℃ ~ 50 ℃ |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Lighting Mode | Matrix lamp |
| Lighting Angle | 17° |
Performance Metrics
| Lighting Distance | 50m | 100m | 150m |
|---|---|---|---|
| Lighting Area | 150m² | 620m² | 1400m² |
| Central Illuminance | 86Lux | 25Lux | 12Lux |
