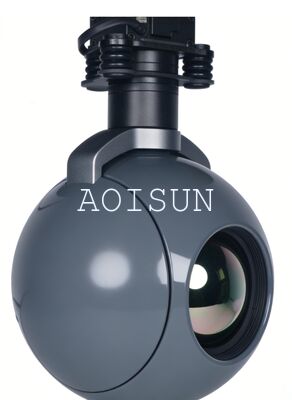

50mm Lens Drone Thermal Cameras 12V - 16V Gimbal Drone Camera
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
50mm Lens Drone Thermal Cameras
,Drone Thermal Cameras 12V
,16V Gimbal Drone Camera
50mm Lens Thermal Imaging Drone UAVs Gimbal IR Camera
The QIR50T is a professional-grade drone-mounted thermal camera equipped with a 50mm lens, delivering long-range thermal imaging with exceptional clarity. Built on a high-precision 3-axis gimbal using FOC motor control technology and encoder-based stabilization, it offers outstanding stability, compact size, lightweight structure, and low power consumption. The gimbal supports PWM, S.BUS, and serial command control, making it suitable for both remote manual operation and automated command-based missions.
High-Precision Adjustable 3-Axis Gimbal
The QIR50T’s adjustable-speed gimbal allows operators to select between low-speed mode for precise control at large zoom levels and fast-speed mode for rapid response during small-range adjustments. Its one-key center function instantly returns the camera to its home position, improving operational efficiency in dynamic scenarios.
Powerful 50mm Thermal Imaging System
Integrated with an advanced uncooled longwave infrared sensor (8–14 μm) and a professional 50mm thermal lens, the QIR50T captures both thermal and visible images simultaneously. The 50mm thermal optics reveal subtle temperature variations that cannot be seen with the naked eye—ideal for detecting structural damage, identifying overheating equipment, locating missing individuals, and performing a wide range of industrial inspections.
Multiple Video Output Options
The QIR50T offers flexible output formats including HDMI, Ethernet/IP, and SDI.
- HDMI and SDI support 1080p output.
- Ethernet/IP defaults to 720p streaming with full-quality 1080p recording.
- IP and SDI versions support 360° endless pan for unrestricted field of view.
Versatile Control Interfaces
Standard control methods include PWM and TTL serial port. Optional S.BUS is available.
The IP version additionally supports TCP control through an Ethernet connection. With the Viewport/Viewlink software suite, operators can achieve IP streaming, TTL control, and TCP command operations seamlessly.
Specification
| Hardware Parameter | |
| Working voltage | 12V ~ 16V |
| Input voltage | 3S ~ 4S |
| Dynamic current | 500mA @ 12V |
| Idle current | 400mA @ 12V |
| Power consumption | ≤ 3.85W |
| Working environment temp. | -20 ℃ ~ +50 ℃ |
| Output | micro HDMI(HD output 1080P 60fps) / IP |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / S.BUS / TCP |
| Gimbal Spec | |
| Pitch/Tilt | ±90° |
| Roll | ±85° |
| Yaw/Pan | ±170°/360°*N(IP/SDI output version) |
| Vibration angle | Pitch/Roll: ±0.01°, Yaw :±0.01° |
| One-key to center | √ |
| Thermal Imager Spec | |
| Lens size | 50mm |
| Horizontal FOV | 12.4° |
| Vertical FOV | 9.3° |
| Diagonal FOV | 15.5° |
| Detective Distance (Man: 1.8*0.5m) | 1471 meters |
| Recognize Distance (Man: 1.8*0.5m) | 368 meters |
| Verified Distance (Man: 1.8*0.5m) | 184 meters |
| Detective Distance (Car: 4.2*1.8m) | 4510 meters |
| Recognize Distance (Car: 4.2*1.8m) | 1127 meters |
| Verified Distance (Car: 4.2*1.8m) | 564 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25 ℃ ) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 2x, 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Thermal Oject Tracking | |
| Update rate of deviation pixel | 25Hz |
| Output delay of deviation pixel | <3ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 ~ ±192 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| NW | 890g |
| Product meas. | 118*173*116mm |
