13400LM DJI Spotlight 120W High Power Spotlight For DJI M300 Drone
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
13400LM DJI Spotlight
,DJI Spotlight 120W
,High Power Spotlight For Drone

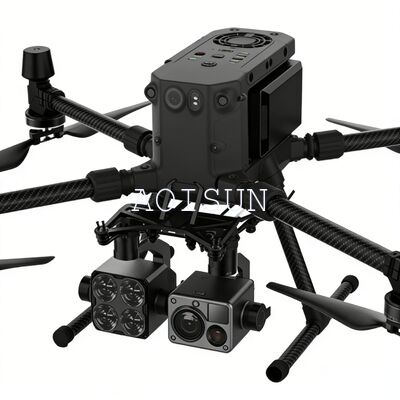

GL60 Plus Spotlight Searchlight For DJI M300 Drone
The GL60 Plus is a next-generation DJI PSDK spotlight designed for the DJI Matrice 300 RTK. With 120W high power output and an impressive brightness of 13,400 lumens, it delivers powerful illumination covering up to 1225 m². Equipped with a 3-axis stabilized gimbal, the GL60 Plus synchronizes seamlessly with the DJI H20 series cameras, maintaining consistent aiming and stability during flight. Its quick-mount design ensures fast deployment, making it ideal for nighttime law enforcement, surveillance, warning and deterrence, directional guidance, power line inspection, and search-and-rescue operations.
Key Features
- High Power & Ultra-Bright Output
A major performance upgrade compared with previous GL60 and GL60 Zoom models, delivering stronger illumination and wider coverage.
- Full DJI PSDK Compatibility
Controlled directly through DJI Pilot, providing a seamless user experience with native DJI interface integration.
- Synchronized with H20 Series Gimbal
The searchlight’s 3-axis stabilization keeps movement fully synchronized with the DJI H20/H20T camera orientation.
- Advanced Optical Imaging Technology
Utilizes 4 optical lens groups with a combined 15° beam angle, delivering concentrated, long-distance illumination.
- Durable & Weather-Resistant
Rated IP55 for dust and water protection, and equipped with a new die-cast thermal dissipation structure for efficient cooling and long-term reliability.
Specs:
| Product Model | GL60 Plus Spotlight | |||||
| Powered By | DJI Skyport V2.0 | |||||
| Weight | 750g | |||||
| Size | 126*131*167mm | |||||
| FOV | 15° | |||||
| Voltage | PSDK 17V+OSDK 24V | PSDK 17V | ||||
| Led Power | 120W | 60W | ||||
| Luminous flux | 13400lm±3% | 8000lm±3% | ||||
| LM effect | 111.67lm/W | 133.33lm/W | ||||
| Drone Flight Height | 50M | 100M | 150M | 50M | 100M | 150M |
| Lighjting Spot diameter | 13.2m | 26.4m | 39.5m | 13.2m | 26.4m | 39.5m |
| Lighting area | 136m² | 544m² | 1225m² | 136m² | 544m² | 1225m² |
| Central illuminance | 85Lux | 24Lux | 11Lux | 45Lux | 12Lux | 6Lux |
| Function mode | Lighting Flashing gimbal angle adjustment Auto-follow bright adjustment |
|||||
| Gimbal rotation range | Pitch | horizontal | ||||
| -110°~+30° | ±200° | |||||
| Working temperature | -20°C~+50°C | |||||
