2 In 1 DJI Matrice 30 Payload 15W Spotlights Megaphone For Drone
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
Detail Information
Brand Name
AOISUN
Model Number
LP12
Name:
DJI Matrice 30 Payload
Size:
270g
Weight:
162*111*75mm
Interface:
DJI OSDK
Speaker Power:
15W
Power Supply Voltage:
24V
Luminous Flux:
2000lm±3%
Searchlight FOV:
13°
Max Volume:
120dB
Highlight:
2 In 1 DJI Matrice 30 Payload
,DJI Matrice 30 Payload 15W
,Spotlights Megaphone For Drone
Product Description

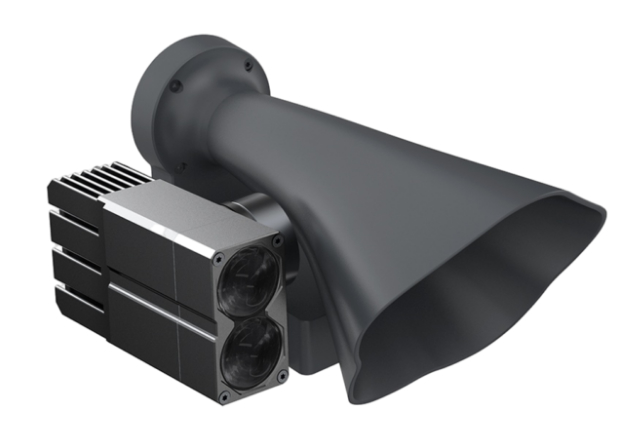

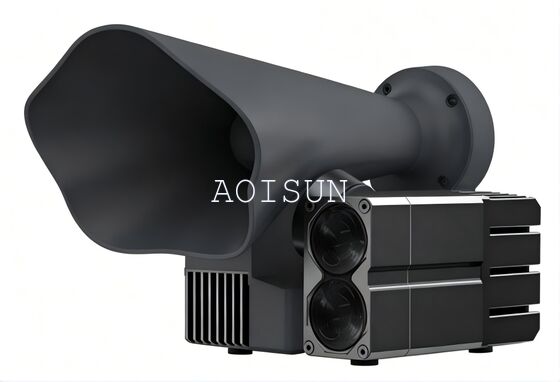

2 In 1 DJI Matrice 30 Payload: 15W Spotlights & Megaphone
This ultra-lightweight all-in-one payload integrates both a high-power loudspeaker and precision searchlight, designed exclusively for the DJI M30 drone. Weighing only 270g, it minimizes impact on flight time while delivering outstanding operational performance. The searchlight provides an effective illumination distance of 100 meters, while the LRAD-grade speaker outputs 120 dB with a 200-meter effective broadcast range, making it one of the most efficient dual-function payloads for emergency response, public safety, inspections, and night operations.
Seamless Integration & Quick-Release Design
Seamlessly integrated into DJI Pilot 2, all audio and lighting functions can be accessed instantly, significantly improving operational efficiency. The unique quick-release structure ensures fast installation and removal, perfectly matching the DJI M30 OSDK interface.
Key Features
- Dual-function payload (speaker + searchlight) – compact, powerful, and only 270g, with minimal impact on drone endurance
- LRAD-level broadcasting performance – 120 dB ultra-high sound pressure with 200 m effective audio transmission range
- High-efficiency optical illumination – clear and uniform beam with 100 m effective search distance
- Full DJI SDK integration – all functions controlled directly via DJI Pilot 2 for streamlined operation
- Quick-release mounting system – rapid assembly/disassembly, perfectly compatible with DJI M30 OSDK
- Designed for emergency response, nighttime search, inspections, and crowd guidance
Technical Specifications
| Weight | 270g |
| Size | 162*111*75mm |
| Interface | DJI OSDK |
| Spotlights Power | 30W (Regular mode) 40W (Ultra bright mode) |
| Speaker Power | 15W |
| Power Supply Voltage | 24V |
| Luminous Flux | 2000lm±3% |
| Searchlight FOV | 13° |
| Illumination Distance | 150M height 1.7Lux (Central illuminance) 50M Height 20Lux (Central illuminance) |
| Gimbal Movement Range | Pitch -120°~+45° |
| Max Volume | 120dB |
| Effective Volume | 200m@74db; 350m@69db |
| Speaker Functions | Real-time speaking Upload recording files Play stored audio file Text To Speech (supports multi-language) Background sound |
| Audio Formats | mp3/wav/m4a/flac/aac |
| Control | Via DJI Pilot 2 |
| Operating Temperature | -15°C~+40°C |
