Quality IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens factory
<
Quality IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens factory
Quality IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens factory
>

IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens

IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens
IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens DJI Matrice 30 Drone Spotlights Searchlights The DJI Matrice 30 drone searchlight is a high-performance illumination payload developed using DJI SDK technology, fully compatible with the DJI M30 platform. Equipped with dual optical lens ...
Brand Name:AOISUN
Model Number:T60
Minimum Order Quantity:1
Product Custom Attributes
Highlight

IP4X Drone Spot Lights

,

Drone Spot Lights 60W

,

DJI Drone Spotlight 8000 Lumens

Name:
Drone Spot Lights
Electrical Interface:
DJI SDK
Size:
91.4 X 88.5 X 62.2mm
Weight:
190g
Degree Protection:
IP4X
Supported Models:
Matrice 30
Most Power:
60W
Lighting Mode:
Matrix Lamp
Lighting Angle:
16°
Product Description
IP4X Drone Spot Lights 60W DJI Drone Spotlight 8000 Lumens

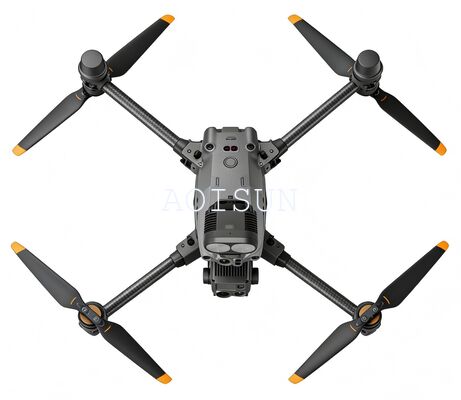

DJI Matrice 30 Drone Spotlights Searchlights
The DJI Matrice 30 drone searchlight is a high-performance illumination payload developed using DJI SDK technology, fully compatible with the DJI M30 platform. Equipped with dual optical lens groups, it delivers a uniform 16° light beam with a lighting distance exceeding 150 meters and illuminates an area of over 150㎡ at a 50-meter flight height.
Featuring a standard quick-release mount and actively controllable gimbal, the searchlight synchronizes its angle with the DJI M30 camera. It supports full DJI Pilot control functionality including brightness adjustment and burst-flash mode, making it ideal for night inspections, law enforcement, emergency response, and search-and-rescue missions.
Key Features
  • DJI SDK Payload — Fully controlled and operated through DJI Pilot
  • Quick-release mounting bracket — Fast, tool-free installation
  • 8000-lumen output — Lighting coverage up to 1400㎡, lighting distance 150 m
  • One-key power control — Supports adjustable brightness for long-range illumination and target search
  • Burst-flash mode — Adjustable burst brightness and flashing frequency
  • Controllable gimbal — Supports 0° to –85° pitch angle and synchronous movement with M30 camera gimbal
  • High-speed cooling fan — Intelligent temperature-based speed adjustment for efficient thermal management
Technical Specifications
Product DJI M30 searchlight
Electrical interface DJI SDK
Size 91.4 x 88.5 x 62.2mm
Weight 190g
Degree protection IP4X
Supported models Matrice 30
Maximum power 60W
Lighting mode Matrix lamp
Lighting angle 16°
Gimbal 0-85° Controllable Gimbal
Installation mode Fit standard quick release bracket
Working temperature -10 ℃ ~ 50 ℃
Storage temperature -20 °C ~ 60 °C
Performance Metrics
Lighting Distance 50m 100m 150m
Lighting Area 150m² 620m² 1400m²
Central Illuminance 46Lux 13Lux 7Lux
