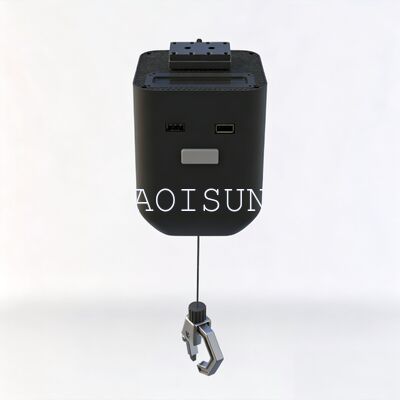

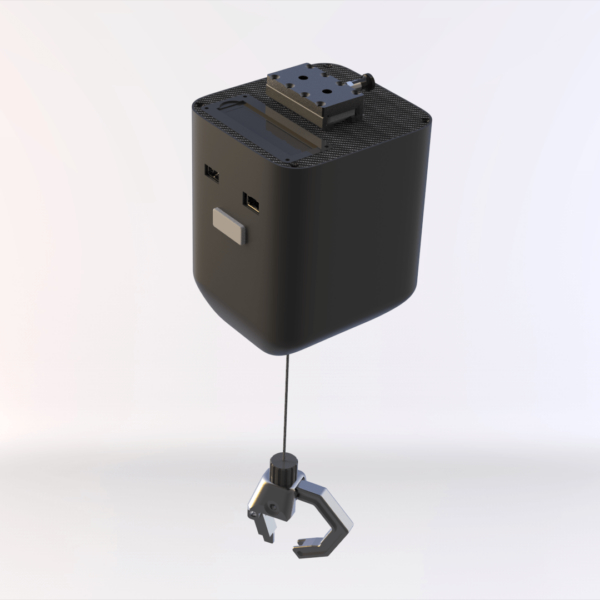

Max Load 15KG Drone Delivery System 20V - 28V Drone Payload Release Mechanism

The Drone Payload Cargo Delivery Drop Release Mechanism System is a highly versatile aerial delivery solution engineered to seamlessly integrate with any industrial-grade multi-rotor drone platform. Boasting a maximum payload capacity of 15KG, it offers robust load-bearing performance for diverse logistics scenarios. Specifically optimized for DJI M300, M350, and FlyCart 30 drones via the PSDK protocol, it ensures plug-and-play compatibility with these mainstream industrial UAVs. Beyond pre-configured adaptations, the system supports two flexible control modes: standalone operation via its dedicated remote controller, or seamless integration into third-party remote controllers or flight controllers. This adaptability enables rapid deployment of a full-featured BVLOS (Beyond Visual Line of Sight) drone logistics drop release system, catering to long-range, high-efficiency cargo delivery needs across industries.

• High Self-weight Coefficient
  • Compact and exquisite, with dimensions of approximately 130*120*170 mm.
  • Suspension system net weight: approximately 980 g.
  • Maximum effective load capacity: 15 kg.
• Small Size, Big Power
  • High control precision and fast response speed.
  • Maximum ascent and descent speed: 0.6 m/s.
  • Factory default ascent and descent speed: 0.3 m/s.
• High Load, High Speed
  • Compact and exquisite, with dimensions of approximately 130*120*170 mm.
  • Suspension system net weight: approximately 980 g.
  • Maximum effective load capacity: 15 kg.
• High-Performance
  • Servo motor with a power supply voltage of 6S-7S (20V to 28V), recommended supply voltage: 24V.
  • Small size, big power | High control precision | Fast response speed.
  • Maximum ascent and descent speed: 0.6 m/s.
  • Factory default ascent and descent speed: 0.3 m/s.
• Automatic Payload / Cargo Release upon Ground Contact
  • Self-developed high-specification, high-stability automatic release hook.
  • Self-weight: approximately 120 g, maximum load capacity: approximately 50 kg.
  • Cargo will automatically release upon ground contact.
• Stop Rope Release upon Ground Contact
  • Paired with an automatic release hook set, when the cargo weight exceeds 1 kg, the rope release stops upon ground contact.
• Emergency Rope Cut-off
  • One-click rope cut-off in emergencies.
  • Independent fuse modular design to avoid the short-circuit risk of taking power from the drone platform.
  • High-capacity 18650 3000mAh lithium battery.
  • 3-second quick fuse cut-off.
• Multi-Flight Drone Platform Compatibility
  • Based on the PSDK protocol, it is compatible with DJI M300, M350, and FlyCart 30.
  • Independent remote controller compatible with any industrial-grade drone with a payload capacity greater than 1 kg.
  • Integration into third-party control systems using SBUS, PPM, or serial communication.
