23W DJI Matrice 350 Payload 13.6V Drone Gas Detector High Sensitivity
23W DJI Matrice 350 Payload
,DJI Matrice 350 Payload 13.6V
,Drone Gas Detector High Sensitivity

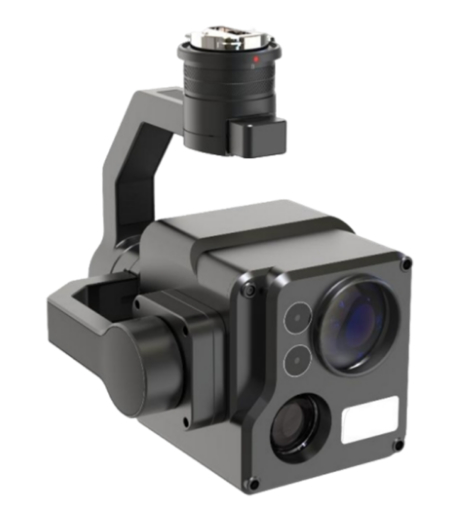

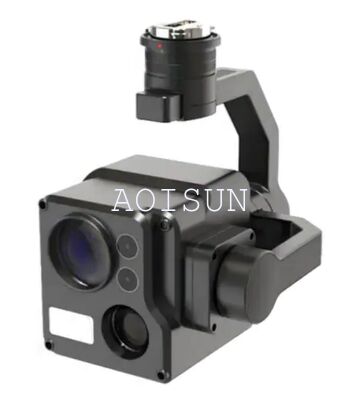

Laser Methane Gas Leakage Detector For DJI M350
The DJI M350 Drone Laser Methane gas detector, developed based on the DJI SDK, is fully compatible with the DJI Matrice 350 drone. It is equipped with a high-sensitivity laser methane detection module, a 10x optical zoom lens, and a 1200-meter laser rangefinder. The system is controlled via the drone remote control app, displaying real-time methane data and recording exceedance alarm information. The laser detection module can perform methane leak detection in a spiral scan mode at altitudes up to 200 meters and can penetrate up to five layers of glass for indoor detection. It connects to the gimbal interface for power supply, providing high efficiency and convenience. The high-altitude detection method allows for flexible monitoring of natural gas leaks in areas that are difficult for personnel to reach, such as urban building top pipelines, field pipelines, bridge pipelines, and storage tanks. The system employs intelligent data analysis to detect leaks and immediately trigger alarms, recording inspection trajectories and alarm events, and automatically generating inspection reports.
Key Features
- DJI SkyPort V2 Connection: Plug-and-play connection via DJI SkyPort V2 interface. Works simultaneously with the app and DJI Pilot 2, controlled via DJI remote control.
- Professional-Grade Methane Detection Sensor: Wide measurement range, high accuracy, and long-distance capabilities, enhancing efficiency for field personnel.
- 5-Million-Pixel High-Resolution Lens: Integrated high-resolution lens eliminates the need for external attachments, maximizing operational time while meeting field requirements.
- High Sensitivity and Glass Penetration: 5ppm*m sensitivity level combined with five-layer glass penetration, addressing indoor methane detection challenges.
- 1200-Meter Laser Rangefinder: Accurate distance measurement and alarm point recording.
- Real-Time Data Display and Alarm Recording via App: Controlled via a remote control app, with dynamic display of measurement data and intelligent alarm information recording.
- Automatic Inspection Report Generation: After the inspection task, the system automatically generates methane concentration data reports. Inspection trajectories can be traced for post-analysis, facilitating review and analysis.
This system is designed to improve work efficiency and reduce operator burden through its advanced features and seamless integration with DJI Technology.
| Intelligent Laser Methane gas detection sensor | |
| Name | Intelligent Laser Methane Gas leakage detector |
| Model | A-LM10 |
| Electrical Interface | DJI SkyPort V2 |
| Dimensions | 128*158*164mm |
| Weight | 700g |
| Rated Power | 23W |
| Rated Voltage | 13.6V |
| Current | 2A |
| Power Supply | Drone-powered |
| Control Distance | Consistent with drone link |
| Control Method | Drone remote controller- DJI Pilot |
| Sensitivity | 5ppm*m |
| Concentration Range | 0-99999ppm*m |
| Sampling Frequency | 200Khz |
| Measurement Accuracy | ±10% (1000~40000ppm*m) |
| Remote Sensing Distance | 200m |
| Infrared Detection Laser | 1650nm |
| Green Indicator Laser | 515nm |
| Glass Penetration | 5 layers |
| Lens Pixels | 5 million |
| Resolution | 1920×1080, 2592×1944 |
| Frame Rate | 30 fps, 25 fps |
| Focal Length | 5-50mm, 10x optical zoom |
| Aperture | F2±10% |
| Field of View | Horizontal: 50.85~7.67, Vertical: 27.78~4.36 |
| Range Measurement | 5-1200m |
| Range Accuracy | ±1m |
| Laser Wavelength | 905nm |
| Material | Aluminum alloy |
| Installation Method | Quick release |
| Protection Level | IP55 |
| Supported Models | DJI Matrice 300 RTK, Matrice 350 RTK |
| Operating Temperature | -25℃ to 55℃ |
| Storage Temperature | -30℃ to 60℃ |
