T60 Combined Drone Lighting System 60W Mavic 3 Light IP4X
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
Detail Information
Brand Name
AOISUN
Name:
Drone Lighting System
Electrical Interface:
DJI SDK
Dimensions:
90 X 72 X 62 Mm
Weight:
Approximately 190g
Compatible Models:
M30
Protection Class:
IP4X
Maximum Power Consumption:
60W
Lighting Angle:
16°
Highlight:
Combined Drone Lighting System
,Drone Lighting System 60W
,Mavic 3 Light IP4X
Product Description
T60 Combined Drone Lighting System 60W Mavic 3 Light IP4X

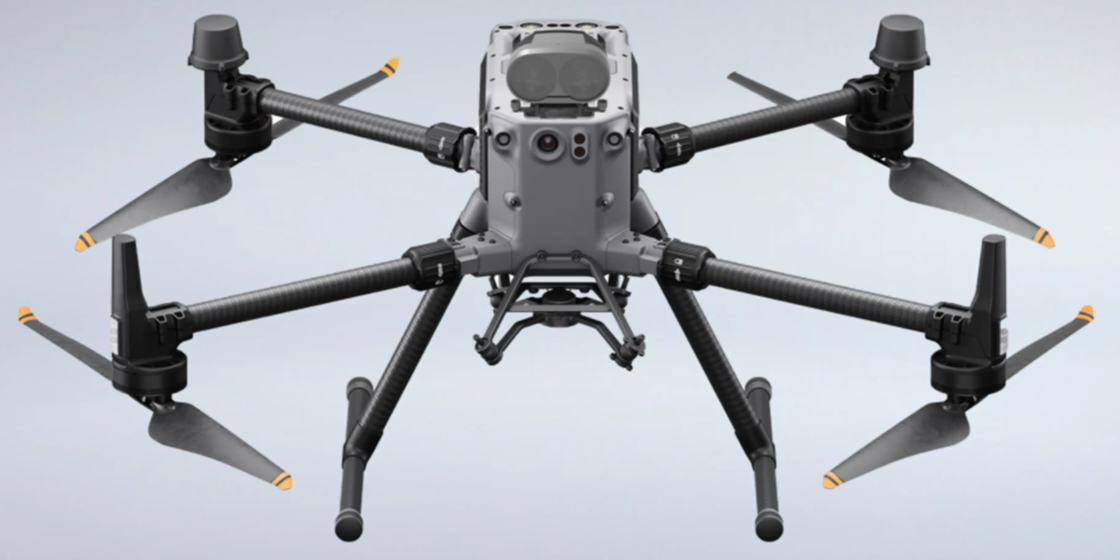

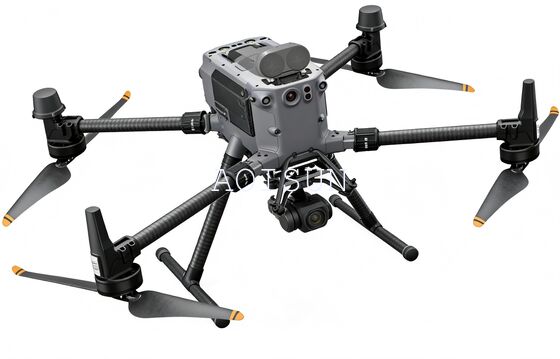

The T60 Combined Searchlight is engineered specifically for professional DJI UAV operation scenarios, serving as a high-efficiency lighting solution for the DJI Matrice 30 series and Matrice 350 RTK. Featuring a dual optical-lens architecture and intelligent hardware design, it delivers powerful illumination performance while ensuring operational reliability in demanding environments.
At its core, two sets of custom-built optical lenses project a highly uniform 16° light beam through a precisely designed optical path. This enables the T60 to achieve an illumination distance of over 150 meters, while covering more than 150 m² at a 50-meter altitude. It meets the high-brightness needs for long-distance target searching and provides even, wide-area lighting for operational tasks such as night inspections, engineering monitoring, and emergency search and rescue.
Dual-Platform Compatibility
For DJI Matrice 30 Series:
- Equipped with an M30 PSDK quick-release bracket, enabling rapid installation and removal without tools, significantly reducing preparation time.
For DJI Matrice 350 RTK:
- Seamless integration is achieved via the M350 PSDK quick-release bracket and E-Port interface, ensuring excellent stability and compatibility without requiring additional modifications.
Intelligent Lighting Control & Gimbal Functions
The T60 combines ease of operation with mission-critical reliability. Entire lighting control is available through DJI Pilot 2:
Basic Lighting Mode:
- One-click ON/OFF and adjustable brightness for various ambient conditions.
High-Brightness Strobe Mode:
- Adjustable strobe brightness and customizable strobe frequency for use in signal warning, target marking, and emergency response applications.
The built-in controllable gimbal supports angle adjustment from 0° to –85°, and can intelligently sync with the drone's camera gimbal—enabling "lighting synchronized with the lens". This prevents exposure inconsistency and ensures the target area remains evenly illuminated during recording or monitoring.
Adaptive Cooling System
To guarantee long-term stable performance, the T60 features a self-regulating heat dissipation system. A high-speed cooling fan automatically adjusts its speed according to real-time internal temperature. Even when operating at a high power output of 35W, the system keeps the device within optimal temperature ranges, preventing overheating and maintaining sustained performance.
Technical Parameters
| Electrical Interface | DJI SDK |
| Dimensions | 90 x 72 x 62 mm |
| Weight | Approximately 190g |
| Compatible Models | M30 |
| Protection Class | IP4X |
| Maximum Power Consumption | 60W |
| Installation Method | Compatible with Standard Quick-Release Bracket |
| Lighting Mode | Combined Lighting |
| Lighting Angle | 16° |
| Gimbal | 0-85° Controllable Gimbal |
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -20 °C to 60 °C |
| Lighting Distance | 50m, 100m, 150m |
| Lighting Area | 150m² (50m), 620m² (100m), 1400m² (150m) |
| Central Illuminance | 46Lux (50m), 13Lux (100m), 7Lux (150m) |
