Intelligent Control DJI Mavic 3 Payload Combined Mavic 3 Lights 35W
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
Detail Information
Name:
DJI Mavic 3 Payload
Electrical Interface:
DJI SDK
Dimensions:
132 X 43 X 64 Mm
Weight:
114g
Compatible Models:
M3 Industrial Edition
Protection Class:
IP4X
Maximum Power Consumption:
35W
Installation Method Screw:
Quick-Release
Lighting Mode:
Combined Lighting
Highlight:
Intelligent Control DJI Mavic 3 Payload
,Combined Mavic 3 Lights
,Mavic 3 Lights 35W
Product Description

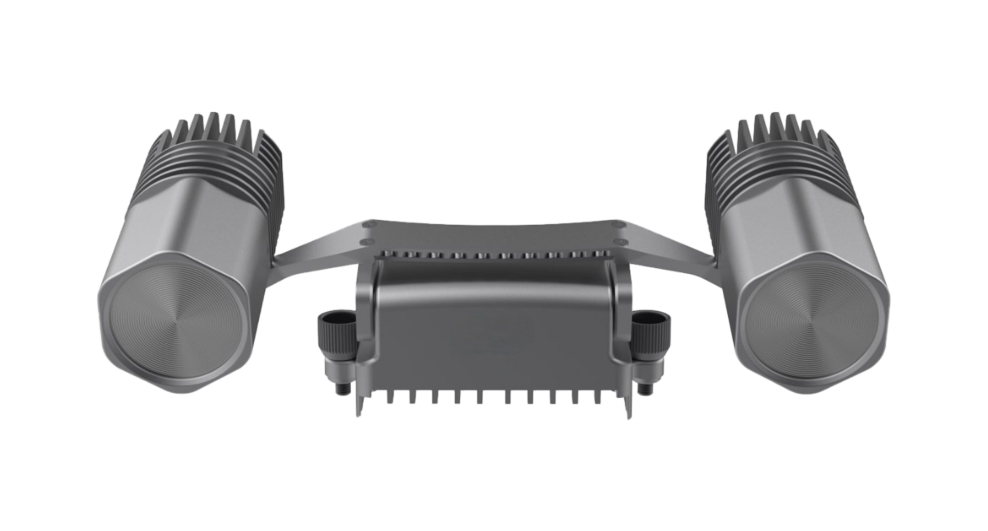

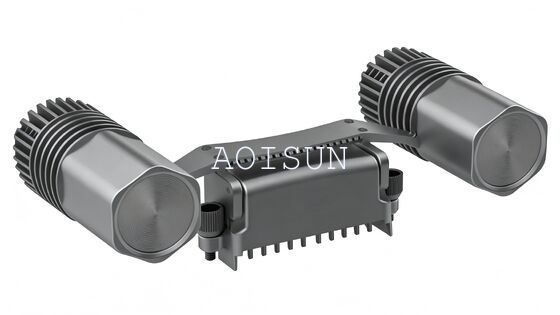

Intelligent Control DJI Mavic 3 Payload Combined Mavic 3 Lights 35W
Professional UAV Lighting Solution
The T30 Combined Searchlight is engineered for professional UAV operations, delivering powerful performance and intelligent control for optimal lighting support on DJI Mavic 3E and DJI Mavic 3T drones. This compact searchlight features a 35W high-power lighting module that weighs only 114g while providing stable, bright illumination with a 14° concentrated beam outputting over 24Lux at 50 meters. Ideal for long-distance environmental lighting and detailed target capture, particularly suited for night inspections and search-and-rescue operations.
The T30 incorporates a single-axis stabilized gimbal that not only stabilizes the light during flight but also synchronizes with the drone's camera gimbal. This enables "lighting follows the lens" functionality, ensuring the light remains focused on the target area and preventing brightness shifts in captured images. The gimbal offers adjustable angles from 0° to -90°, providing flexibility for both horizontal fill light and vertical downward illumination to meet various operational requirements.
Key Features
- 35W High-Power Lighting – Delivers bright, focused illumination with 14° beam, achieving 24Lux at 50 meters
- Single-Axis Stabilized Gimbal – Counteracts vibrations and synchronizes with the UAV's camera gimbal for stable lighting
- Flexible Angle Adjustment – Gimbal supports 0° to -90° tilt for precision in horizontal and vertical lighting
- Fully Controlled via DJI Pilot 2 – Simple one-click on/off and multi-level brightness adjustment
- High-Brightness Strobe Mode – Adjustable strobe brightness and frequency for signal warning and target marking
- Compact and Lightweight – Weighs just 114g, ensuring minimal impact on drone performance
- Intelligent Synchronization – The light moves in sync with the camera to ensure accurate illumination during filming or monitoring
Technical Specifications
| Parameter | Specification |
|---|---|
| Electrical Interface | DJI SDK |
| Dimensions | 132 x 43 x 64 mm |
| Weight | 114g |
| Compatible Models | M3 Industrial Edition |
| Protection Class | IP4X |
| Maximum Power Consumption | 35W |
| Installation Method | Screw Quick-Release |
| Lighting Mode | Combined Lighting |
| Lighting Angle | 14° |
| Gimbal | Single-Axis Stabilized Gimbal |
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -20 °C to 60 °C |
| Lighting Distance | 50m, 100m, 150m |
| Lighting Area | 113m² (50m), 471m² (100m), 1063m² (150m) |
| Central Illuminance | 24Lux (50m), 5Lux (100m), 2.5Lux (150m) |
