CHASING F1 Underwater Drone with 1080P Full HD Camera 28M Max Depth and 6 Hours Battery Life for Fishing
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
Detail Information
Brand Name
AOISUN
Size:
278x154x215 Mm
Weight:
2KG
Max Depth:
28M
Wire Length:
28.5M
Working Time:
4-6 Hours
Battery Cycle Times:
>300 Times
Working Temperature:
-10℃~45℃
Highlight:
Full Hd Fishing Underwater Drone
,Fishing Underwater Drone Wireless
,Wireless Drone With Camera For Fishing
Product Description

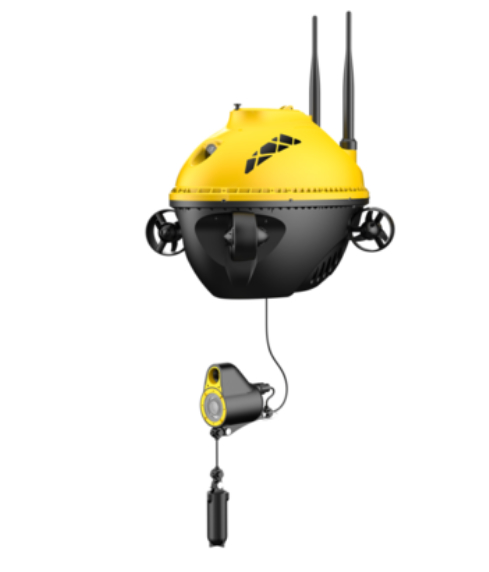

CHASING F1 Underwater Drone with Camera for Fishing
The CHASING F1 is a high-tech digital full HD wireless fish finder underwater drone with remote control designed for all types of fishing. This advanced device provides intelligent information about underwater terrain, surroundings, objects, fish mass locations, and fish positions in real-time.
Versatile Fishing Applications
- Deliver hooks to predetermined fishing points
- Mount bait boats or sonar balls
- Assist night fishing with infrared lighting
- Detect fish school distribution and species in real-time
- Adjust float depth based on returned depth readings
- Observe underwater environment to prevent snagging
- Record fishing spots and enable automatic GPS cruise
- Live stream or video-record the fishing process
Advanced Propulsion System
Features a vector layout propulsion system with four thrusters for multiple-freedom motion. All-directional horizontal movements controlled through the app enable faster and more accurate fish finding.
Accessory Compatibility
Compatible with spherical sonars including Deeper and Lucky models, plus attachable bait boats for one-click bait deployment via app. Built-in telecommunications and power supply interfaces support additional accessories.
High-Definition Imaging
Equipped with a Sony stellar sensor supporting 1080P videos and 2-megapixel photos. Infrared lighting provides up to 1-meter visibility in dark environments for clear monitoring and recording.
Depth Control & Monitoring
Controlled via app with built-in automatic reel reaching maximum depth of 28 meters. Automatically adjusts from vertical to horizontal orientation upon reaching bottom. Real-time camera angle monitoring enables quick fish location tracking.
Real-Time Data Transmission
Built-in depth and temperature sensors deliver images, depth readings, and temperature data in real-time to the app interface via WiFi.
GPS Positioning System
GPS functionality supports position maintenance, tracking, multiple fishing spot recording, automatic cruise between locations, and one-key return. Automatic return to original set point when remote control distance is exceeded.
Extended Battery Performance
4800mAh lithium battery provides up to 6 hours of operation. Replaceable design allows for extended working hours as needed.
Technical Specifications
Fish Detector
| Size | 278*154*215 mm |
| Weight | 2 kg |
| Max Depth | 28 m |
| Wire Length | 28.5 m |
| Working Time | 4-6 hours |
| Battery Cycle Times | >300 times |
| Working Temperature | -10℃ to 45℃ |
Camera System
| CMOS | 1/2.8 |
| Lens Aperture | F2.0 |
| Focal Length (EFL) | 2.7 mm |
| ISO Range | 100-102400 |
| FOV | Diagonal 164.6° |
| Photo Maximum Resolution | 2-megapixel (1920*1080) |
| Photo Format | JPEG |
| Video Resolution | 1080P@30fps / 720P@30fps |
| Video Maximum Bitstream | 4M |
| Video Format | MP4 |
Sensor Systems
| IMU | Triaxial Gyroscope / Accelerometer / Compass |
| Depth Sensor | <±0.25 m |
| Temperature Sensor | <±2℃ |
| GPS | ±1 m |
Charging System
| Power | 2A/12.6V |
| Charging Time | 2.4 hours |
LED Lighting
| Infrared Light (IR) | 7*IR Infrared Light LED |
