DJI M400 Tethered Drone Power Station: Tethered Light Illumination Support for Critical Emergency Search and Rescue

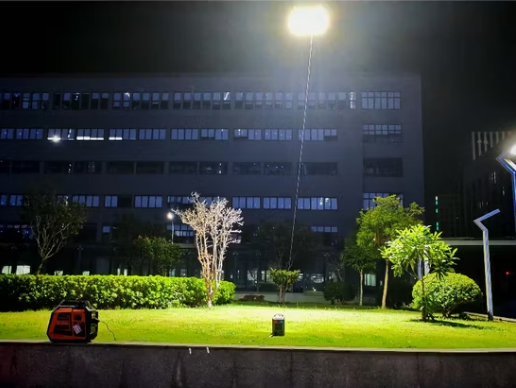

When every second counts in emergency search and rescue, the DJI M400 tethered drone power station becomes your lifeline. It delivers non-stop tethered light illumination—no battery drains to halt operations—cutting through darkness or low-light chaos to spot survivors faster. Built for critical SAR missions, it turns the M400 into a reliable, bright beacon, ensuring your team never misses a clue when lives are on the line.
1. Adapted to DJI M400RTK
1). Support flight altitude: ≥ 100m (equipped with 110m professional tethered cable,
including 10m redundant length).
2). Support flight duration: ≥ 24 hours (actual endurance is affected by the structural
strength and electrical system durability of the drone).

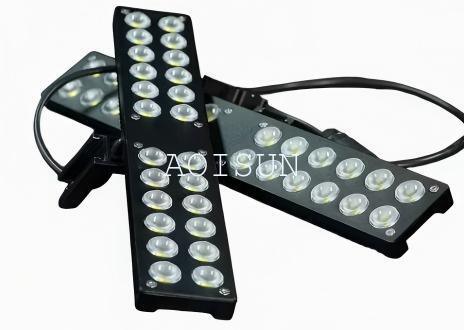

Optional lighting: 800W.
2.Typical characteristics
2.1 Lightweight and Portable, Fast deployment
Adopting a lightweight design, it is compact in size, lighter in weight, and can be easily carried by one person. It supports rapid deployment in the field and meets the needs of mobile missions.
2.2 Multiple Protections, Safe and Reliable
Electrical isolation: design with complete separation of AC high voltage and DC low voltage electricity.
Equipped with multiple protection mechanisms such as input overvoltage/undervoltage, output overcurrent/short circuit, etc., automatic fault detection and recovery ensure stable system operation.
Ultra High Voltage Withstand Standard ≥ 3000VDC.
2.3 Low Voltage Button to Start AC Input, No Need AC Air Switches, Improve The Safety.
Adopting low-voltage soft starting mode, replacing traditional circuit breaker starting, with ultra-high waterproof rating far superior than air switches, further improving the safety of isolated AC contact use.
2.4 Touch Screen Display 4.3-inch:
Real time display: electrical parameters such as real time
power/voltage/current/temperature/cable length/power consumption/running time.
Operating data curve chart: Voltage/current/temperature curve chart. Fault record. Logs storage and read.
2.5 Stable Power Supply and Long-lasting Battery Life
The onboard module provides constant voltage output, that avoids ineffective charging and discharging losses, protect battery lifespan, and always maintain a fully charged standby state during operation.
2.6 Intelligent Winch Automated Control System
Automatically follow the takeoff and landing of the drone to retract cables.
Fully automated operation process, unmanned aerial vehicle takeoff and landing do not require manual operation throughout the entire process, reducing operational barriers and improving task efficiency.
2.7 Worry-Free Power Cut Off, Intelligent Cable Retraction
Built in backup power supply, it can automatically switch to backup power mode in case of sudden power outage, completing emergency wire retraction and avoiding the risk of cable entanglement.
2.8 Intelligent Communication Management System
Wired communication between GCS and ground power module: USB Type-C or RJ45 high-speed transmission.
Wireless communication between GCS and ground power module: Bluetooth 5.0 low-power connection.
Optic fiber wireless communication between GCS and drone: Optic fiber. Achieve fast data transmission.
