High Efficiency DJI Matrice 350 Payload Combined DJI Search Light Lightweight

High Efficiency DJI Matrice 350 Payload Combined DJI Search Light Lightweight

MOQ: 1
Standard Packaging: case
Delivery Period: 2 week
Payment Method: L/C,D/A,D/P,T/T
Detail Information
Brand Name
AOISUN
Name:
DJI Matrice 350 Payload
Electrical Interface:
DJI SDK
Dimensions:
162.8 X 92.7 X 40 Mm
Weight:
125g
Protection Class:
IP4X
Installation Method:
Screw Quick-Release
Lighting Mode:
Combined Lightin
Gimbal:
Single-Axis Stabilized Gimba
Lighting Angle:
14°
Highlight:

High Efficiency DJI Matrice 350 Payload

,

Combined DJI Search Light

,

DJI Search Light Lightweight

Product Description

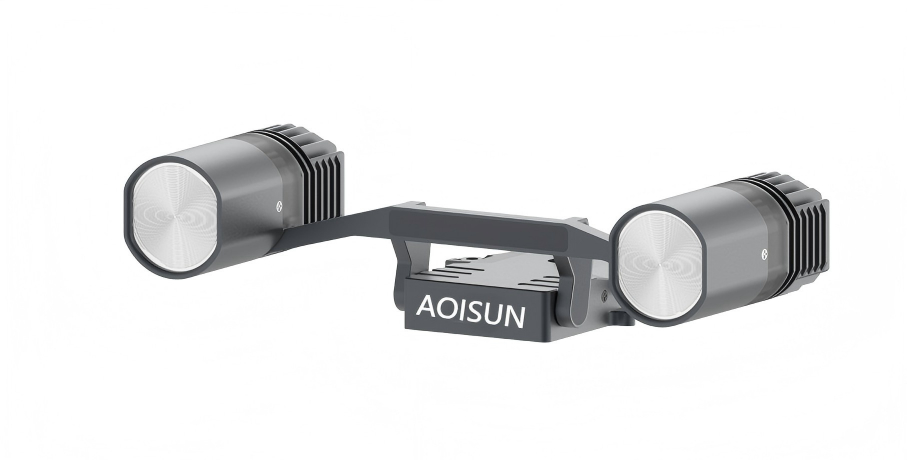

T60S Combined Searchlight: An Exclusive High-Efficiency Lighting Tool for DJI Matrice 30

The T60S Combined Searchlight is a purpose-built professional lighting accessory exclusively designed for the DJI Matrice 30 drone. It strikes an optimal balance between high performance and exceptional portability, boasting a 60W high-power lighting output while maintaining an ultra-lightweight design of just 128 grams. Eliminating the need for additional control modules, the searchlight achieves full functionality via the DJI Pilot 2 App—enabling intuitive operation that significantly streamlines workflow efficiency for field users.

At its core, the T60S incorporates 14° precision-focused lighting technology, delivering outstanding illumination performance. When mounted on the drone at a height of 50 meters, it consistently outputs a central illuminance of 36Lux, while covering an effective lighting area of 113 square meters. This dual-capability design not only fulfills the high-brightness requirements for long-distance target detection but also provides clear supplementary lighting for short-to-medium-range operational zones. Such versatility makes it an ideal choice for professional scenarios including nighttime infrastructure inspections, emergency search and rescue missions, engineering construction monitoring, and remote area patrols.

The T60S integrates practical functionality with robust safety features in its design. The basic lighting mode supports one-click on/off control and multi-level brightness adjustment (30%-100%), allowing flexible adaptation to varying ambient light conditions—from dim rural environments to urban areas with residual light. The high-brightness strobe mode offers dual customization: users can adjust both strobe intensity and frequency (1-10Hz) via the app, making it suitable for signal warnings, target marking, and emergency distress signaling. A standout safety feature is the built-in multi-color strobe warning light, which supports switching between red, blue, yellow, and white, along with multiple flash patterns (fast flash, slow flash, breathing flash). This enhances visibility and safety warnings in complex operational environments, effectively reducing the risk of airspace conflicts with other aircraft. Additionally, the device is equipped with a single-axis stabilized gimbal that minimizes vibrations during drone flight, ensuring stable light output. It also supports gimbal-camera linkage with the drone, realizing "lighting synchronization with the lens"—eliminating brightness fluctuations in captured images and guaranteeing consistent illumination across the entire shooting area.

Technical Parameters
Parameter Specification
Electrical Interface DJI SDK
Dimensions 162.8 x 92.7 x 40 mm
Weight 125g
Protection Class IP4X
Installation Method Screw Quick-Release
Lighting Mode Combined Lightin
Gimbal Single-Axis Stabilized Gimba
Lighting Angle 14°
Operating Temperature -10 °C to 50 °C
Storage Temperature -20 °C to 60 °C
Lighting Distance 50m, 100m, 150m
Lighting Area 113m² (50m), 471m² (100m), 1063m² (150m)
Central Illuminance 36Lux (50m), 8.7Lux (100m), 3.7Lux (150m)
