Quick Detach DJI Flamethrower 100W Drone Flamethrower For DJI M350
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
Quick Detach DJI Flamethrower
,DJI Flamethrower 100W
,100W Drone Flamethrower

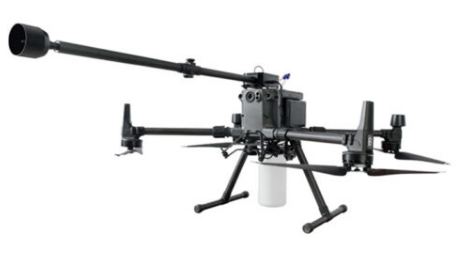

Flamethrower Attachment for DJI Matrice 350 RTK——A Specialized High-Altitude Remote Operation Tool
The Flamethrower Attachment for DJI Matrice 350 RTK is a purpose-built drone accessory, engineered exclusively for seamless integration with the DJI Matrice 350 RTK UAV. Leveraging the DJI Onboard SDK (OSDK), it achieves full compatibility with the DJI Pilot 2 app, enabling intuitive remote control and real-time operation monitoring. This professional-grade attachment is specifically designed to address high-risk, high-altitude maintenance challenges—such as clearing overgrown vegetation, kite strings, or other foreign objects along power lines, removing stubborn attachments from industrial structures, and eliminating high-altitude wasp nests. By enabling live-line operations without the need for power shutdowns, it delivers a safe, efficient, and low-disruption solution, minimizing the risks associated with manual high-altitude work and reducing operational downtime.
Key Features
1. DJI OSDK Deep Integration
Developed with DJI Onboard SDK (OSDK) to ensure native compatibility with the Matrice 350 RTK’s flight control system.
Directly powered by the drone’s main battery, eliminating the need for additional power sources and simplifying deployment.
Full control via DJI Pilot 2 app: Supports adjustable flame intensity, ignition timing, and continuous/burst fire modes, with real-time status feedback (e.g., fuel level, operating temperature) for enhanced operational safety.
2. Quick-Release & Portable Design
Modular split-type quick-detach structure: Allows one-person installation and removal within 60 seconds, no specialized tools required.
Foldable, collapsible body: Reduces storage volume by 40% when folded, facilitating transportation in standard drone cases and improving portability for field missions.
Lightweight construction (only 1.8kg)
Minimizes impact on drone flight endurance and maneuverability, ensuring stable operation even during extended missions.
3. High-Pressure Diaphragm Pump System
Equipped with industrial-grade high-pressure diaphragm pumps, delivering a maximum pressure of 8 bar for efficient fuel atomization and stable flame output.
Energy-saving design: Optimizes power consumption to extend operational time, with a fuel efficiency of 0.3L/min (adjustable based on task requirements).
Anti-clogging mechanism: Prevents fuel residue buildup, ensuring long-term reliable operation in harsh outdoor environments.
4. Versatile & Safe Ignition System
Multi-fuel compatibility: Supports diesel, kerosene, and specialized eco-friendly fuels, adapting to different operational scenarios and regional fuel availability.
Windproof nozzle cover with flame stabilization technology: Ensures rapid ignition (within 0.5 seconds) even in wind speeds up to 12m/s, while preventing backfires and flame drift.
Safety interlocks: Integrated with the drone’s flight control system to disable ignition during takeoff/landing or when the drone is outside preset altitude/range parameters, minimizing operational risks.
Applications
- Power Line Maintenance: Efficiently clears overgrown trees, vines, kite strings, and other conductive/non-conductive obstacles along high-voltage power lines—enabling live-line operations to avoid power outages affecting residential and industrial users.
- Industrial Structure Cleaning: Removes stubborn attachments (e.g., bird nests, debris, rust layers) from chimneys, transmission towers, and industrial pipelines without the need for scaffolding or manual high-altitude access.
- Pest Control: Safely eliminates high-altitude wasp nests, hornet hives, or bird roosts in public areas (parks, stadiums), residential buildings, or remote locations—reducing the risk of stings or property damage during manual removal.
- Emergency Response: Assists in controlled burning of small-scale vegetation fires, clearing firebreaks in remote areas, or disinfecting contaminated zones (e.g., agricultural fields, industrial sites) with flame-based sterilization.
This flamethrower attachment revolutionizes high-altitude maintenance and emergency operations by combining DJI’s reliable drone ecosystem with professional-grade combustion technology. It not only improves operational efficiency by 300% compared to traditional manual methods but also eliminates the safety hazards associated with high-altitude work, making it an indispensable tool for power utilities, industrial maintenance teams, pest control services, and emergency response units.
Specs
| Product Specifications | Measurements |
|---|---|
| Upper Part (Expanded) | 845mm*55mm*83mm |
| Upper Part (Folded) | 435mm*101mm*83mm |
| Lower Part (Expanded) | 197mm*214mm*115mm |
| Outer Packaging Box | 550mm*340mm*198mm |
| Total Weight | 1.05kg |
| Installation Method | Quick-detach |
| Power Supply | OSDK Interface Power Supply (from DJI M350 OSDK interface ) |
| Power Interface | OSDK Interface |
| Rated Voltage | DC 24V |
| Rated Power | 100W |
| Oil Pump Power | 45W |
| Control Method | DJI Pilot 2 |
| Control Distance | As far as DJI M350 drone |
| Expansion Channel | Supports external control channels |
| Maximum Flow Rate | 4.5L/min (Liters per minute) |
| Jet Distance | 3-5 meters (in windless conditions) |
| Fuel for Jetting | Gasoline (Recommended 98#) |
| Operating Environment | -30~40°C |
| Maximum Capacity | 1L |
| Ignition Form | Pulse Arc Ignition |
| Compatible Mounting Model | DJI Matrice M350 RTK |
