High Mobility DJI Drone Radar Strong Penetration Through Wall Radar Intelligent
| MOQ: | 1 |
| Standard Packaging: | case |
| Delivery Period: | 2 week |
| Payment Method: | L/C,D/A,D/P,T/T |
High Mobility DJI Drone Radar
,Strong Penetration Through Wall Radar
,Through Wall Radar Intelligent

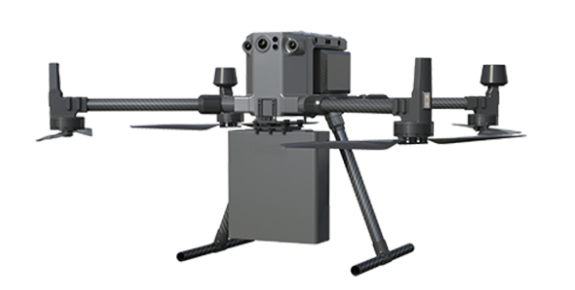

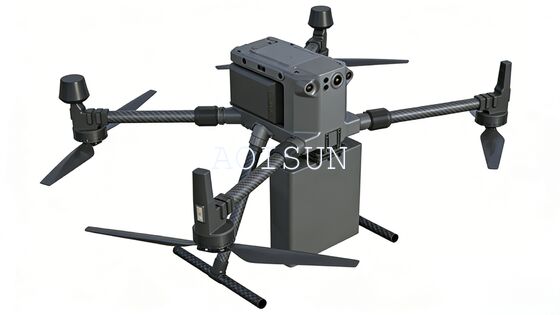

The DJI M350 Drone-Mounted Through-Wall Radar combines ultra-wideband (UWB) radar technology, visual sensors, and the high-performance DJI M350 flight platform into an advanced reconnaissance system. Engineered to approach exterior walls of high-rises for non-intrusive detection, it provides real-time insights into the location, number, and status of human targets behind barriers. This state-of-the-art device stands out with three key strengths: outstanding mobility, powerful penetration, and broad coverage—proving invaluable for emergency response, law enforcement, and disaster relief missions.
As a cutting-edge reconnaissance tool, it integrates UWB radar with biomedical engineering principles to penetrate common building structures. Unlike traditional ground-based through-wall radar, its drone-mounted design overcomes terrain limitations, enabling quick deployment in hard-to-access areas. Below is a detailed breakdown of its core features and technical advantages:
Leveraging the DJI M350’s exceptional agility, the system reaches target areas rapidly and deploys efficiently, regardless of complex terrains (e.g., debris, narrow lanes) or obstacles. Paired with DJI M300/M350 multi-rotor drones, it benefits from top-tier flight control stability, supporting waypoint navigation, hover-and-scan, and other mission-tailored flight modes. This ensures smooth detection tasks—whether in dense cities, remote mountains, or post-disaster ruins, the drone swiftly positions itself for optimal scanning.
Powered by advanced UWB radar (3.1-10.6 GHz), it penetrates common building materials effortlessly, including 30cm-thick reinforced concrete, brick walls, and wooden partitions. Its radar signals feature low attenuation and high range resolution (≤10cm), enabling precise detection of human targets behind walls. Unlike conventional radar, it minimizes interference from clutter (e.g., furniture, pipes) to accurately identify target positions, outlines, and subtle movements—delivering critical intelligence for follow-up operations.
Equipped with a high-speed signal processing chip, the radar completes full scanning of a 100㎡ room in under 30 seconds—slashing reconnaissance time compared to traditional devices. In emergencies (e.g., hostage situations, earthquake rescues), this speed lets decision-makers get real-time target info promptly, gaining precious time for strategy-making.
With a 120° horizontal detection angle and 20-meter maximum effective range, it covers multiple adjacent rooms or up to 3 building floors in one deployment. Its broad coverage ensures full, blind-spot-free detection—whether scanning a single residence or an entire office building—avoiding missed critical target information.
Beyond detecting human presence, it captures comprehensive data: personnel count, distance (±0.5m accuracy), 2D coordinates, posture (standing/sitting/lying), and silhouette imaging. It also maps internal structures (e.g., load-bearing walls, doorways) to build a basic interior layout. Combined with the drone’s HD camera real-time visuals, it cross-verifies target locations and activities—providing reconnaissance teams with a complete, actionable on-site picture.
Integrating advanced adaptive signal algorithms and AI recognition models (trained on 100,000+ scenarios), it automatically filters noise, analyzes radar/visual data, and marks human targets with over 95% accuracy. This cuts operator workload by 60% in data interpretation. The intuitive interface (integrated with DJI Pilot 2) displays results via heat maps and target markers, letting even less experienced operators grasp key info quickly for informed decisions.
