| Brand Name: | AOISUN |
| MOQ: | 1 |
| Delivery Time: | 2 week |
| Payment Terms: | L/C, D/A, D/P, T/T |
IP65 Rugged Uav Detection System With 4-Hour Battery Operation
Basic Info.
| Model | A102A |
| Weight | ≤20kg |
| WorkingTemperature | -20-65°C |
| Screen Size | 10.1Inches |
| Battery Life | ≥4h |
| Specification (520mm415mm224mm) | ±2mm |
| Origin | China |
| Application | Public Place |
| Range | 5-10km |
| External Supply Voltage | 100-220V AC |
| Screen Resolution | 1080P |
| Transport Package | Aviation Box Packaging |
| Trademark | TeJin |
| Production Capacity | 500 |
Product Description

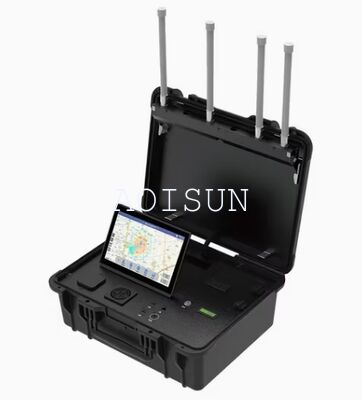

The portable UAV detection and positioning device The portable UAV detection and positioning device is a portable UAV detection device in the form of a suitcase and equipped with a UAV integrated management and control system. Through in-depth analysis and data mining of UAV signals, the device can monitor the UAV's serial number, model, location (latitude, longitude, azimuth), speed, altitude, altitude, take-off point, return point, flight path, etc. Tracking, remote control location (longitude, latitude, azimuth) and other multi-dimensional information for monitoring. The equipment is suitable for low-altitude security in major event security and guard tasks, public security patrol, special service anti-terrorism, political core area, border defense, power petrochemical park, etc. It can work offline with a single machine, flexible and rapid deployment, mobile response , to meet the needs of various scenarios.
Specification
Operating Mode:Radio
Detection Frequency Bands:900MHz, 1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Range:1-10 km (varies based on environment and drone model)
Swarm Detection ≥5 flights (simultaneously)
Trajectory Display ≥5 paths
Device Dimensions: 520*415*224mm
Battery Life≈ 4 hours
Protection Level: IP65 (when case is closed)
Functional Features: Standalone or networked operation Rapid deployment in seconds
